Dumpy Level Surveying And How to Use
Dumpy Level Surveying is a reliable and accurate method used in civil engineering, construction, and land surveying to determine the relative heights of points on a site. It is a vital instrument in construction for establishing levels, ensuring structural integrity, and facilitating smooth execution of projects.

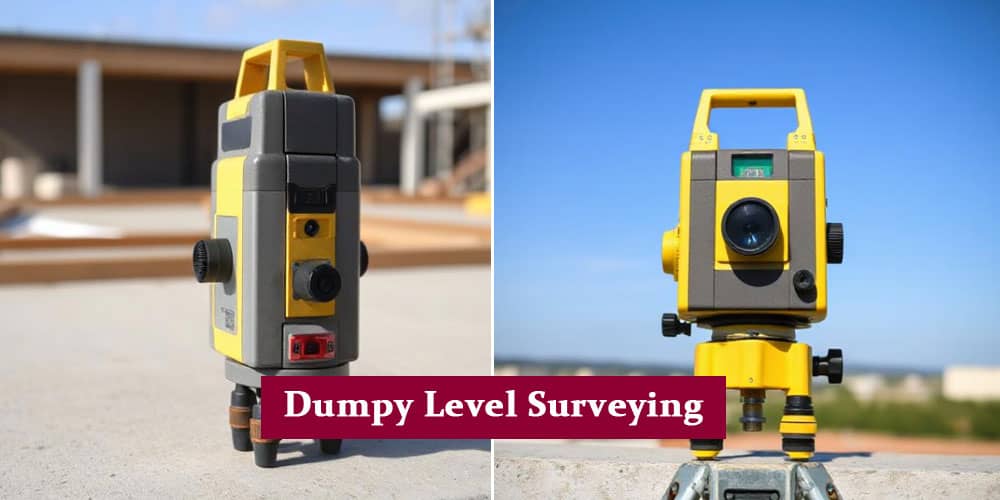

A dumpy level consists of a telescope fixed on a tripod. It provides a clear line of sight for measuring height differences by observing a leveling staff. This article offers a detailed guide on using a dumpy level efficiently, ensuring accurate results in surveying projects.
Components of a Dumpy Level
To fully understand how to use a dumpy level, it is crucial to familiarize yourself with its components:
- Telescope: Provides magnified views of distant objects.
- Leveling Screws: Adjust the instrument's horizontal level.
- Bubble Level (Spirit Level): Ensures the instrument is set perfectly horizontal.
- Tripod: Offers a stable platform to mount the dumpy level.
- Eyepiece and Objective Lens: Used for clear observation of the leveling staff.
- Focusing Knob: Allows sharp and clear visibility of the staff readings.
How to Set Up a Dumpy Level
Follow these steps to set up a dumpy level effectively:
- Select a Suitable Location: Choose a flat, stable area with a clear view of the target points.
- Mount the Tripod: Extend the tripod legs and ensure stability by firmly placing them in the ground.
- Attach the Dumpy Level: Secure the dumpy level on the tripod using the mounting screw.
- Level the Instrument: Adjust the leveling screws while checking the bubble level until the bubble is centered.
- Focus the Telescope: Rotate the focusing knob to get a clear view of the leveling staff.
Performing a Dumpy Level Survey
Once the instrument is set up, follow these steps to perform a successful dumpy level survey:
1. Establish Benchmarks
- Select a known reference point called a benchmark with a fixed elevation.
- Record the benchmark's elevation for accurate comparison.
2. Take Back Sight (BS) Reading
- Position the leveling staff on the benchmark.
- Through the telescope, read the staff value (Back Sight).
3. Take Fore Sight (FS) Reading
- Move the staff to the point where the elevation needs to be determined.
- Record the Fore Sight value.
4. Calculate Reduced Level (RL)
- Apply the formula:
- RL = Height of Instrument (HI) - FS
- HI = Benchmark RL + BS
- This provides the elevation of the unknown point.
5. Repeat for Multiple Points
- Continue moving the staff to various points, taking readings, and calculating the reduced levels.
Tips for Accurate Dumpy Level Surveying
- Stability is Key: Ensure the tripod is firmly placed and the instrument is balanced.
- Consistent Staff Positioning: Keep the leveling staff vertical using a plumb bob.
- Clear Visibility: Perform the survey in clear weather conditions to avoid distortions.
- Frequent Calibration: Regularly calibrate the dumpy level for accurate readings.
Common Errors in Dumpy Level Surveying and Their Solutions
- Instrument Misalignment: Ensure the bubble level is centered for horizontal accuracy.
- Staff Not Vertical: Use a plumb bob to maintain the staff's verticality.
- Parallax Error: Adjust the eyepiece until crosshairs are sharp and fixed.
- Incorrect Recording: Double-check all readings to avoid data entry errors.
Applications of Dumpy Level Surveying
Dumpy levels are widely used in:
- Construction Projects: For setting out foundations, roads, and drainage systems.
- Land Surveying: To measure plot boundaries and elevation variations.
- Road Construction: Ensuring uniform slopes and grades.
- Topographic Surveys: Capturing elevation data for site planning.
Conclusion
Mastering dumpy level surveying is essential for civil engineers and surveyors to achieve accurate site measurements. By understanding the components, setup procedures, and proper surveying techniques, professionals can ensure high-quality project outcomes.
